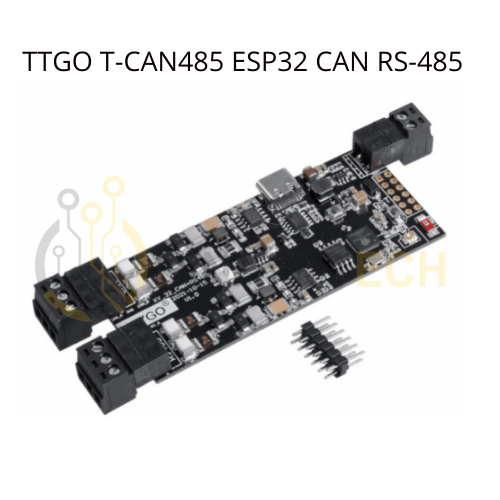

Carte de développement TTGO LILYGO T-CAN485 ESP32 CAN RS485

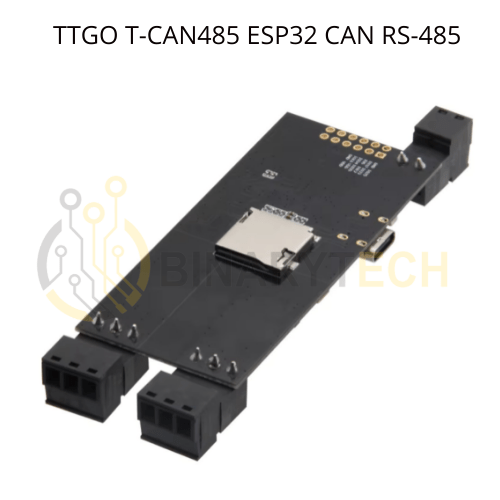

Carte de développement TTGO LILYGO T-CAN485 ESP32 CAN RS485 – Image 2

Carte de développement TTGO LILYGO T-CAN485 ESP32 CAN RS485

Name: Carte de développement TTGO LILYGO T-CAN485 ESP32 CAN RS485
SKU: V8NZ844940
Availability: InStock

د.ج5,900.00

1 en stock

UGS : V8NZ844940 Catégories : carte de développement, Cartes diveres, modules ESP8266 - ESP32 Étiquettes : ESP32, MAX485, Systèmes de communication IoT et M2M

Espressif Systems

he LILYGO TTGO T-CAN485 is a versatile and powerful development module with a CAN RS-485 interface designed for a wide range of IoT applications. This module is equipped with the ESP32 MCU, which features 4MB of Flash memory and a TF Card slot for expansion. This is great for IoT projects that don’t have access to a nearby router via Wi-Fi.

Downloads and Links:

Codes and Datasheet

Features:

ESP32 MCU chip with WIFI Bluetooth
Supports onboard CAN and RS-485 interfaces
It has a TF Card slot for memory expansion
Supports Bluetooth v4.2BR/EDR and BLE standard protocol in addition to 802.11 b/g/n wifi.

Applications:

IoT Data Monitoring.
Remote Sensing.
Security Systems.
Smart Home Automation.
Environmental Monitoring.
Asset Tracking.
Remote Control Systems.
Emergency Response Systems.
Fleet Management.
Industrial Automation.

Package Includes:

1 x LILYGO TTGO T-CAN485 ESP32 Development Board
1 x 6*2-pin Header

Specifications

MCU: ESP32
FLASH: 4MB & Support TF card
Bus Interfaces: UERT, SPI, I2C, CAN, 12S, SDIO
Wireless Connectivity: Wi-Fi: 802.11 b/g/n, BRV4.2+BLE
Onboard Buttons: RST+BOOT
WS2812 RGB: GPIO04
USB to TTL chip: CH9102
POWER: DC 5~12V
CAN+RS-485 Pin:
- CAN: TX – IO27 RX – IO26 SE – IO23
- RS-485: TX – IO22 RX – IO21 SE – IO19 EN-IO17
Onboard functions:
- 1 x RS485 receiver.
- 1 x CAN receiver.
- 1 x TF card connector.
- 1 x WS2812 RGB LED light.
- 8 x Reserved programmable GPIO.
Dimensions(LxWxH):107X35X11mm
